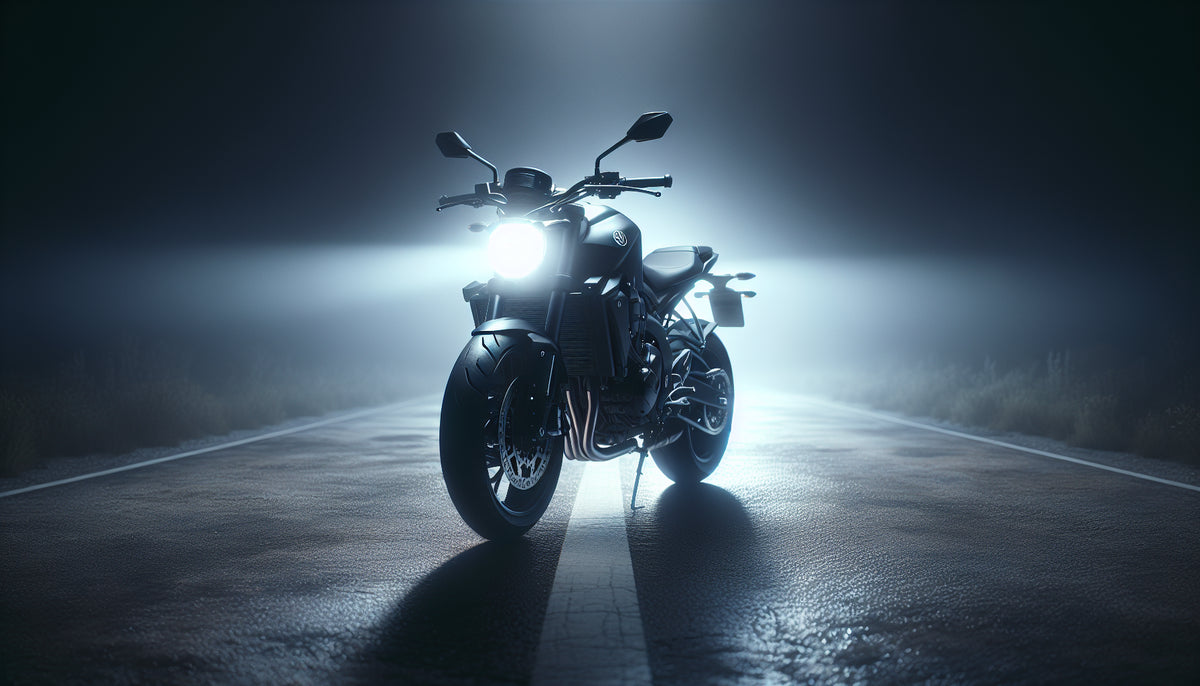

The Yamaha MT-07 and its US counterpart the FZ-07 launched in 2014 with a round halogen headlight that became one of the most recognisable features of the bike. For its time it was acceptable. A decade later, that same headlight looks dim, yellow and old against the LED and laser units on modern machines. A direct-fit LED replacement is one of the most impactful upgrades you can make to a 2014-2017 MT-07, both visually and practically.
What This Upgrade Changes
The LED headlight unit is a complete assembly that replaces the entire original headlight housing. It is not a bulb swap inside the existing housing. The replacement unit brings:
- A projector LED low beam with a sharp, defined cutoff line that eliminates the scattered light pattern of the halogen reflector and produces a wider, more even road illumination.
- A high-power LED high beam that nearly doubles the effective range compared to the factory halogen high beam.
- LED position light ring around the main lens, giving the MT-07 the distinctive halo signature associated with modern premium motorcycles.
- Plug-and-play wiring using the original three-pin connector from the MT-07 wiring harness.
Compatibility
Designed for the Yamaha MT-07 and FZ-07 from 2014 to 2017. The 2018 model year introduced a revised headlight design with a different mounting configuration, so this unit is for the first-generation round headlight only. Check your registration document for the exact model year if you are unsure.
Why the Beam Pattern Matters More Than Lumen Numbers
Marketing materials for LED headlights often lead with lumen figures. The more important specification is beam pattern quality. A poorly designed LED unit can produce a lot of lumens but scatter them inefficiently, creating glare for oncoming traffic and poor road illumination. The projector lens in this unit controls the beam precisely, directing light where it is needed and cutting it off sharply at the horizontal to avoid dazzling oncoming drivers.
The practical result is that you can see further ahead and more clearly to the sides of the road, which is what actually matters on an unlit road at night.
Installation
- Remove the two bolts securing the original headlight housing to the bracket.
- Disconnect the original three-pin wiring connector.
- Connect the LED unit to the same connector.
- Mount the LED housing using the original bolts.
- Adjust beam height using the adjuster screw on the back of the unit.
Installation time: 20 to 30 minutes. No relay changes needed. No coding required.
Impact on the Bike's Character
Beyond the performance improvement at night, the LED headlight changes how the MT-07 looks in daylight. The position light ring gives the front end a more modern, technical appearance that many owners feel the original headlight always lacked. Several riders describe it as the upgrade that finally makes the bike look as aggressive as it rides.
